FO-C Stadium Perimeter Series LED Display

Short Description:

SandsLED FO-C Stadium Perimeter Series LED displays have good heat dissipation, low power consumption, good waterproof effect, high contrast, wide color gamut, high color reproduction, constant brightness, large viewing angle, and simple appearance. Optional splicing combination, can be customized any size modeling. Outdoor displays provide clear, vivid, high-contrast images and videos that catch the eye and convey information.

Cabinet Size: 1000*1000

Pixel Pitch: 3.91mm, 4.81mm, 6.25mm,7.81mm, 10.4mm

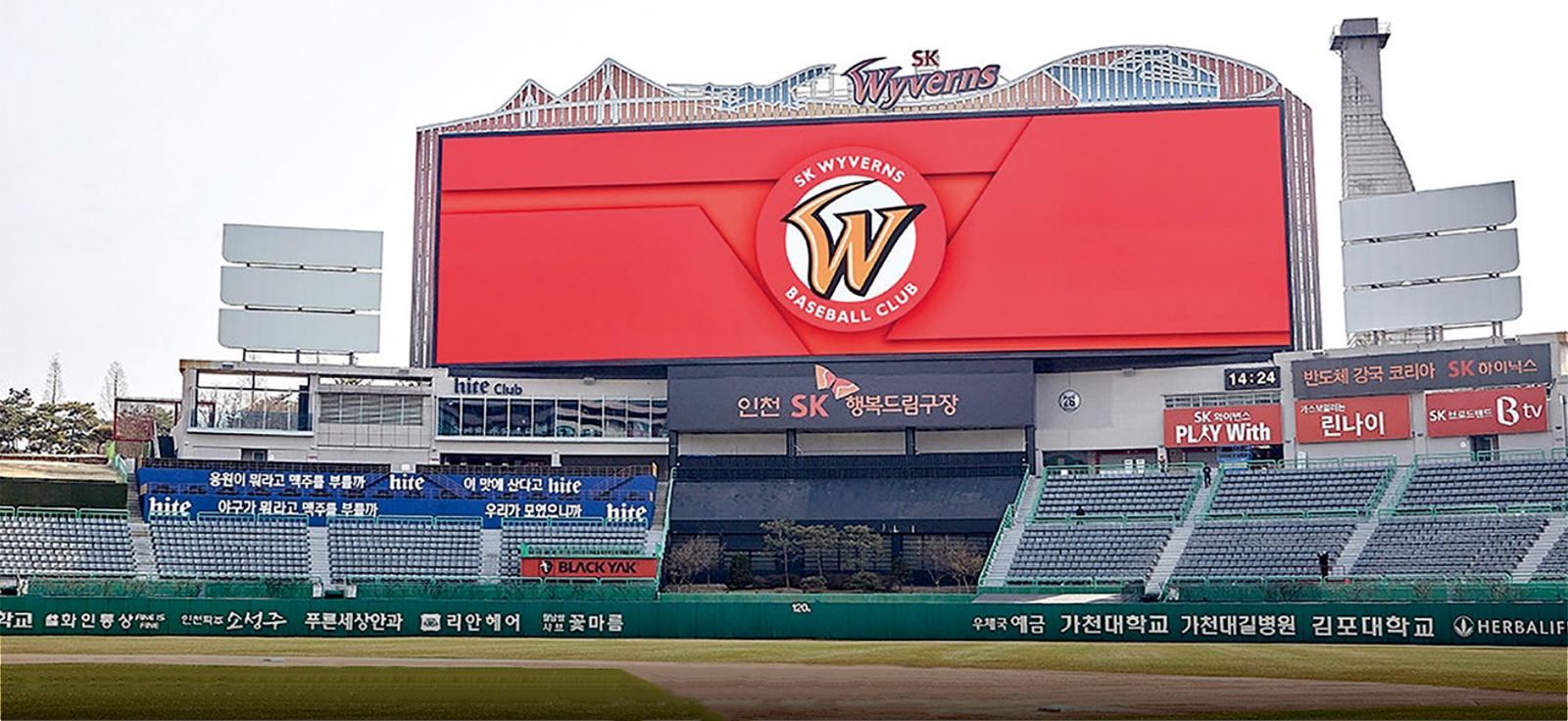

Applications: Football Stadium, Playground Perimeter LED Screen, Arena Display, etc.

Send email to us Whatsapp Email

Product Detail

Uniform Color

Broadcast color gamut, color temperature and brightness, are intelligently adjustable. Larger viewing angle achieves horizontal 120 degrees and vertical 120 degrees.

Exquisite Craftsmanship

Nice appearance, and simple structures, is made of Die-casing Aluminum cabinet to reduce the weight of the display and the space, thereby it greatly decreased the weight-bearing.

The products are convenient in transporting and installing, which save labor cost, being installed & dismounted by one person. They can be assembled quickly by inner connection.

Excellent Performance

High debugging brightness and no damage to gray scale, achieve the debugging technology for nice image.

Stadium perimeter series LED displays with IP65 waterproof rate,contrast up to 3000:1

Can be able work under the complex outdoor environments.

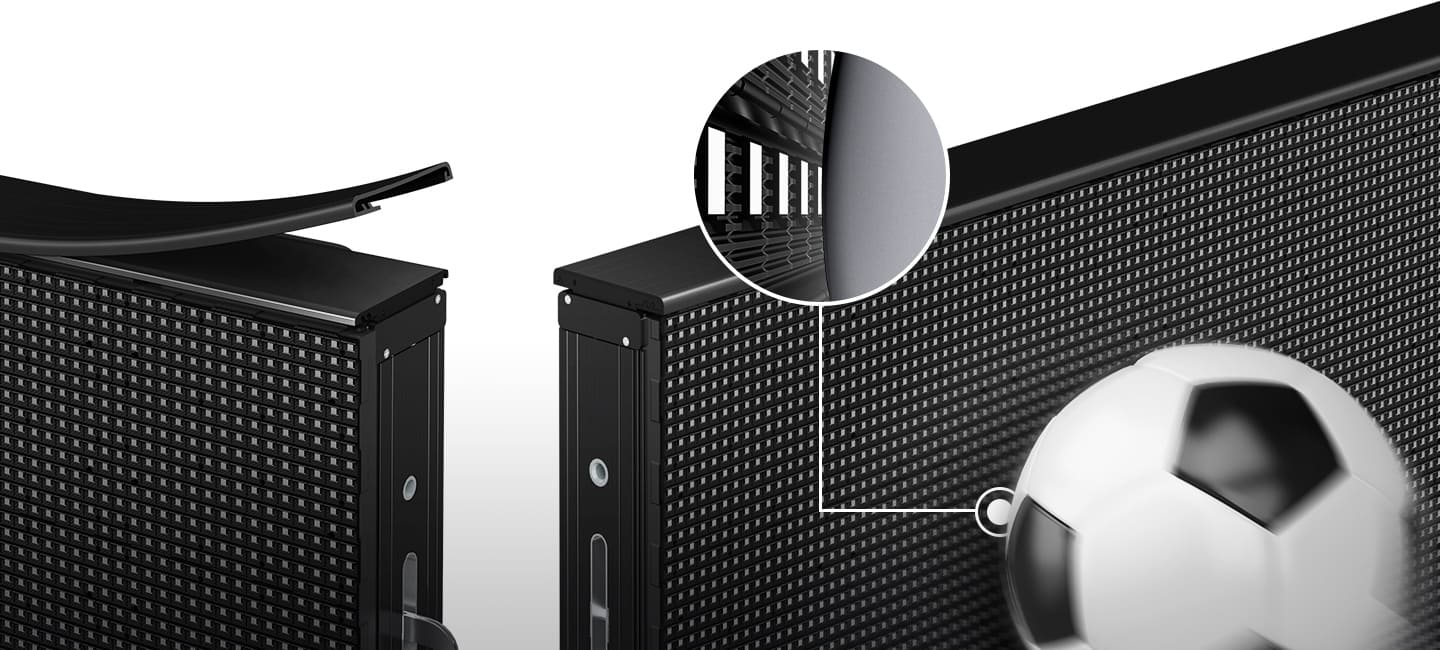

Flexible Design Prevent Ingbumping

The display designed to protect players from the impact of collision against the perimeter with a soft rubber protection cover

the LED diodes in the rubber to withstand accidental contact by a player or a stray ball to ensure durable and continuous performance.

Excellent Performance

High refresh rate prevents flicker, 16-bit color processing provides the highest level of the color gradient.
Better and nature gray scale shifting reduce shooting stripes effectively. IP 65 Protection Level

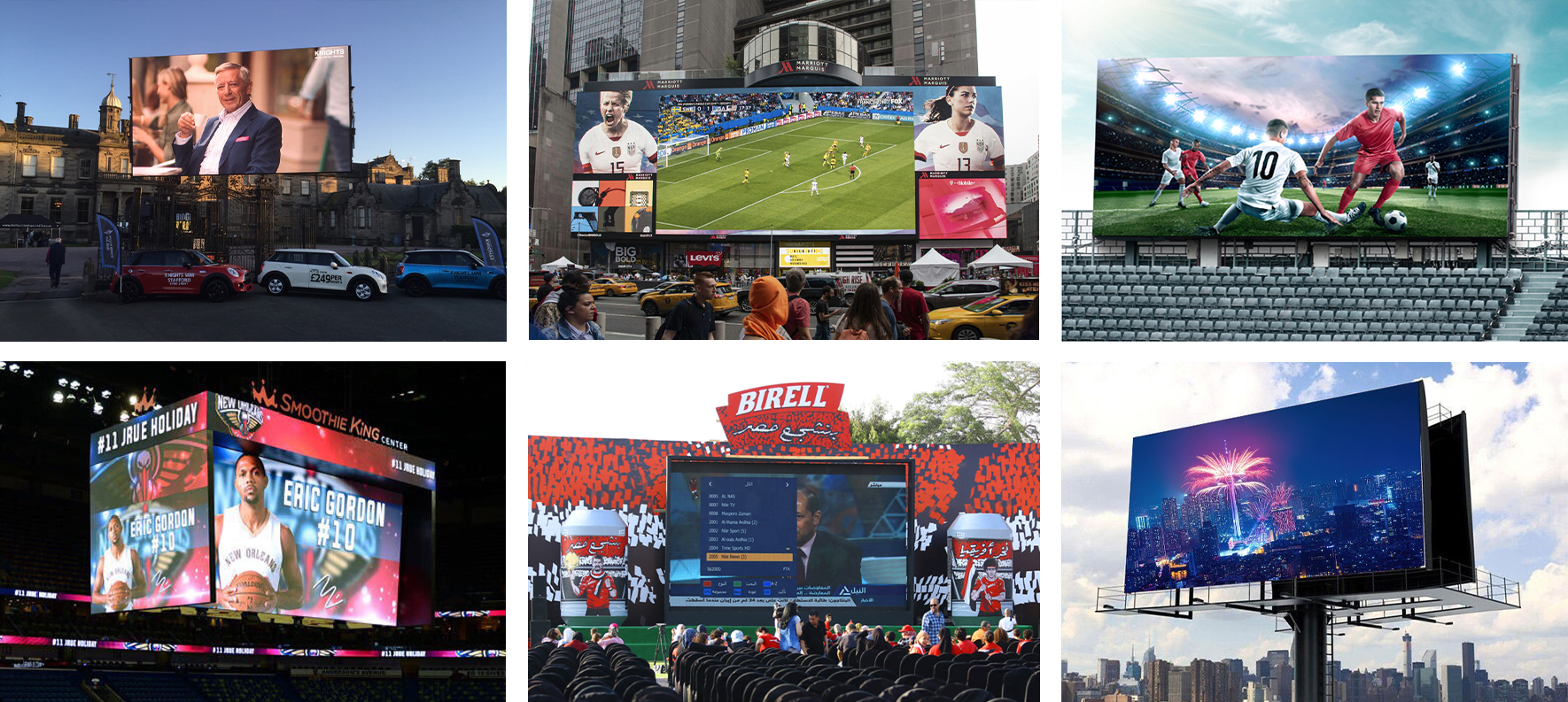

Multiple Applications

Digital Signage system, Chain store, Street furniture, Billboard, Football stadium, Perimeter LED poster, Arena display, etc.

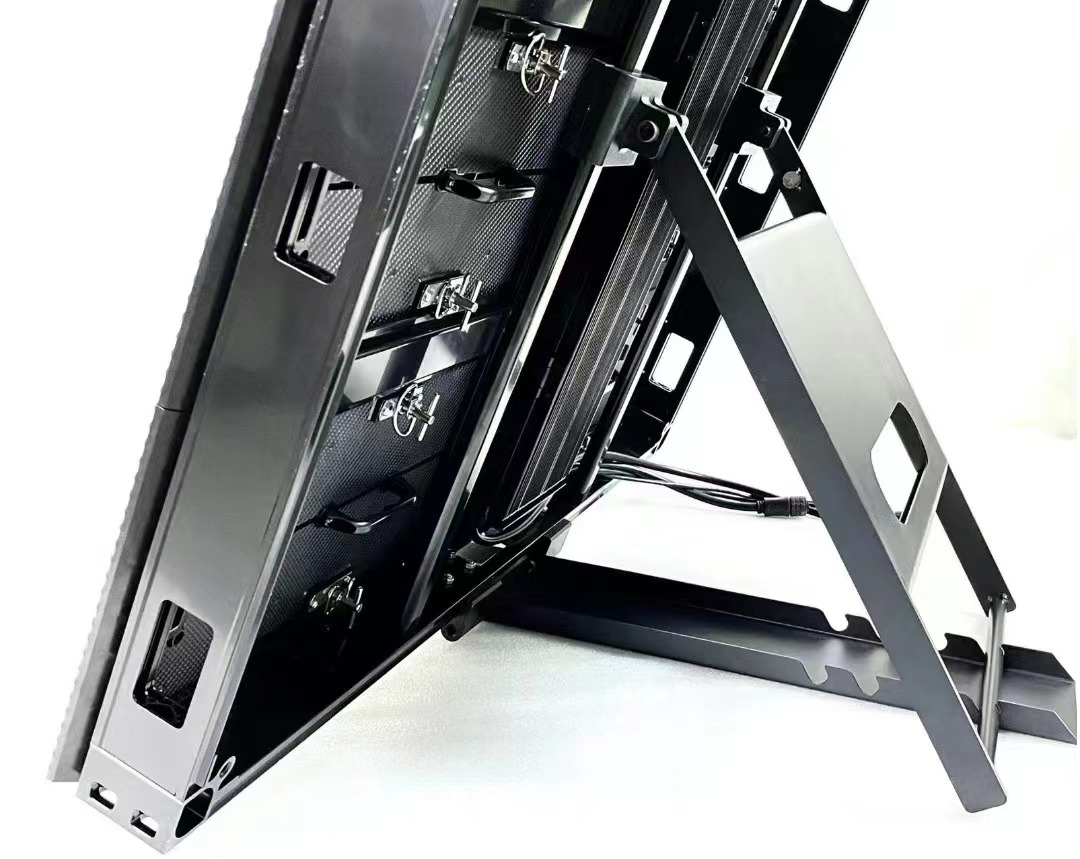

Hardware Features

easy installation, disassembly, and maintenance;

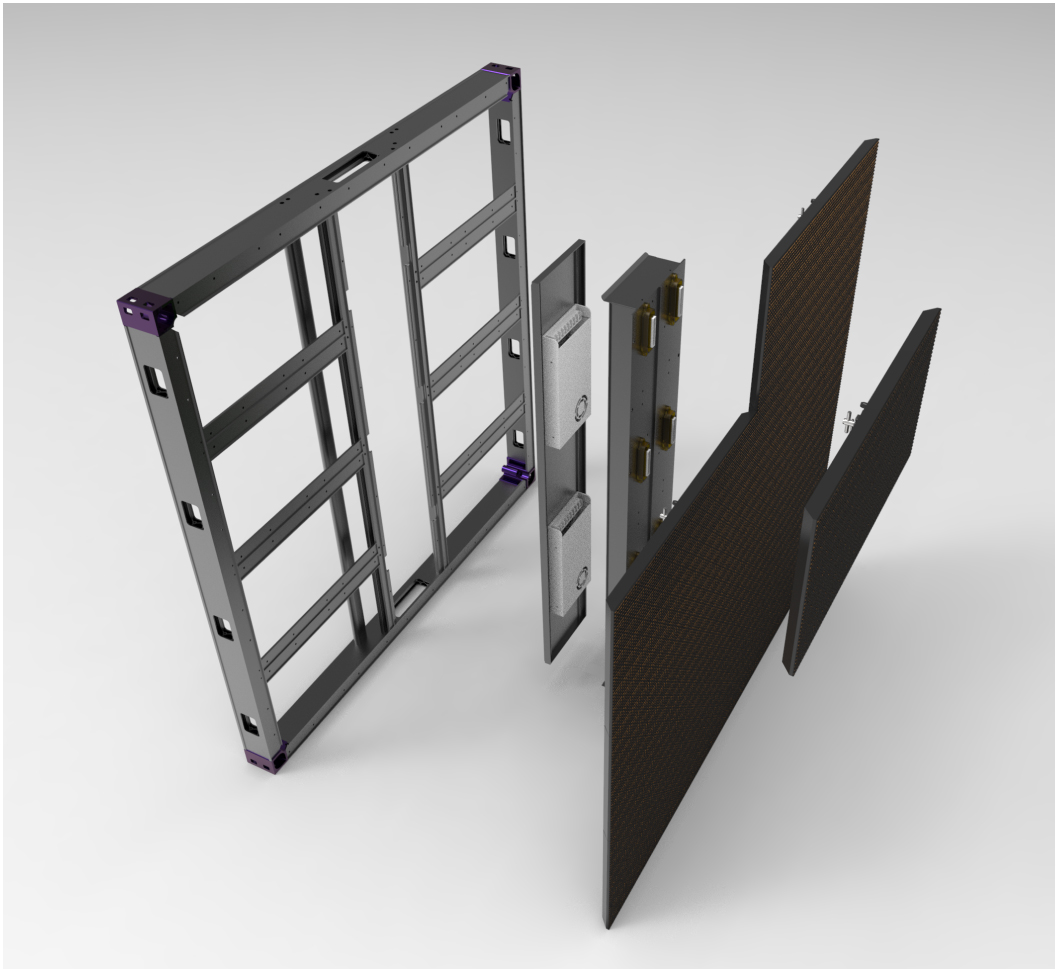

The unit structure adopts a new cast aluminum or Die Cast Magnesium shell with lightweight, high precision, fast heat dissipation.

module front/back maintenance;

modular design, easy for installation and field maintenance;

Seamless connection; precise modules for getting a smooth viewing experience.

Attention

SandsLED recommends that our customers purchase enough LED display modules for spare replacement. If the LED display modules come from different purchases, the LED display modules may come from different batches, which will cause color difference.

Technical Specification

Model	Sinpad-P3.91	Sinpad-P4.81	Sinpad-P6.25	Sinpad-P7.81	Sinpad-P10.4
Pixel Pitch	P3.91	P4.81	P6.25	P7.81	P10.4
Cabinet Size(mmmmmm)	500*250	500*250	500*250	500*250	500*250
Weight	24kg/㎡	24kg/㎡	24kg/㎡	24kg/㎡	24kg/㎡
Module (dots)	128*64	104*52	80*40	64*32	48*24
Brightness(cd/m2)	6500	6500	6500	6500	6500
Refresh Rate(Hz)	3840	3840	3840	3840	3840
Cabinet (dots)	256*256	208*208	160*160	128*128	96*96
Cabinet Size W	1000mm	1000mm	1000mm	1000mm	1000mm
Cabinet Size H	1000mm	1000mm	1000mm	1000mm	1000mm
Working Environment	SPORTS/OUTDOOR	SPORTS/OUTDOOR	SPORTS/OUTDOOR	SPORTS/OUTDOOR	SPORTS/OUTDOOR
